Combustion and Thermal Parts Platform

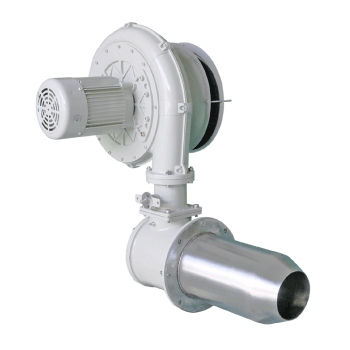

PTC-F gas burner is a high-precision temperature control burner designed by DYDTEC for industrial applications. It has the characteristics of wide capacity regulation range， sufficient combustion， reliability and stability， high convective heat transfer efficiency and so on. It has a wide rang of applications， such as hot air heater， drying furnace， preheating furnace， ceramic shuttle kiln， glass tempering furnace， quenching furnace， annealing furnace， RTO， thermal oxidation furnace， etc.

Applicable maximum combustion chamber temperature 950°C;

High convective heat transfer efficiency;

Turn down ratio 20:1;

Flexible adjustment to meet a variety of temperature control needs;

Excellent low fire performance;

Perfect for both high and low temperature applications;

Low CO and NOx emissions;

Applicable to natural gas and LPG;

Direct ignition with spark plug.

• Click to view：Datasheet DYDTEC-PTC-F.pdf

•



•

Q:Can it use flame rod?

A:PTC350 can use flame rod, other models need to use UV.

Q:Is there the option of high velocity?

A:At present, only PTC1200HS/F has the high-speed option  and TECFG burner can be used if necessary.

Q:Is there the option of refractory block?

A:(for 1200C) No refractory block and TECFG burner can be used if necessary.

Q:Can it work with other actuator brand like Honeywell, elektrogas, etc?

A:Air control valve can be connected with any actuator through a coupling.

Q:Can it work with fixed air?

A:Yes

Q:For modulating control, can it use ratio regulator for gas supply?

A:Yes

Q:Can you quote it less filter in the blower?

A:Filters can be removed if necessary.

Q:Can it work less pilot?

A:Yes. However, local regulations shall be followed.

PTC-F Burner Drying Heating Applications
