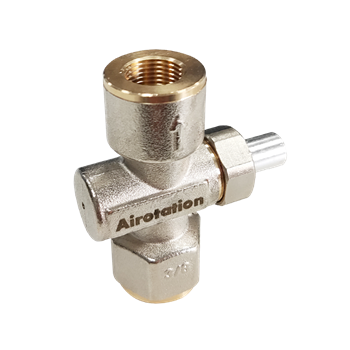

PBSC Series Push Button Stop Cock

Part Code

1010216504-002
Model

PBSC 12N
Size

NPT 1/2”
Maximum working pressure

5bar
Medium

Natural gas/Liquefied Petroleum Gas/Air
Material

Threaded connection
Brass nickel plated

This product cannot be returned or replaced without quality problem. Please refer to the policy of "7 Days without Reason for Return or Replacement" for details

Expected delivery：

If the payment is completed before 16:00 on working days, the goods can be delivered on the same day; The payment will be completed after 16:00 working day, and the goods will be delivered the next day; It will be postponed in case of holidays

Delivery：

选择省份

Freight：

Unknown

Price：

Quantity：

- +

Add Cart

Buy now

A total of 0 products were selected

Batch add to cart

Alternative products

Product Introduction

Product Manual

Product Overview

The push button stopcock is used to cut off the airflow between the pipeline pressure measuring point and the pressure gauge. Under normal conditions, the push button stopcock remains closed to prevent the pressure gauge from being damaged by sudden overpressure. When the pressure gauge needs to be read, press the stopcock downward to allow the gas pressure to be transmitted to the pressure gauge through the stopcock.

Click to view：PBSC Series Push Button Stop Cock
