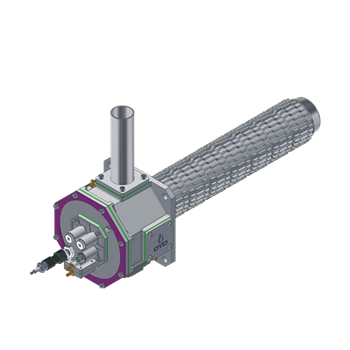

Combustion and Thermal Parts Platform

Equipped with a heat exchanger to recover waste heat, the combustion air can be preheated up to 650 ℃.

Modular design, each module can be replaced and maintained separately.

Suitable for pulse control and continuous control.

Graded combustion, combustion is more environmentally friendly.

The electrode comes with a cooling air protection circuit and has both detection and ignition functions.

Heat resistant steel heat exchanger, suitable for various heat treatment furnace types below 950 ℃.

Direct heating application

In a direct heating system, the burner is combined with an injector to extract the flue gas from the exhaust of the burner.

Heat exchanger material

M-cast steel 1250 ℃ (direct heating) 1200 ℃ (indirect heating)

C-ceramics 1100 ℃ (direct heating) 1050 ℃ (indirect heating)

FTR metal 1000 ℃ (direct heating) 950 ℃ (indirect heating)

Selflame Self recuperative radiant tube burner.pdf
