Combustion and Thermal Parts Platform

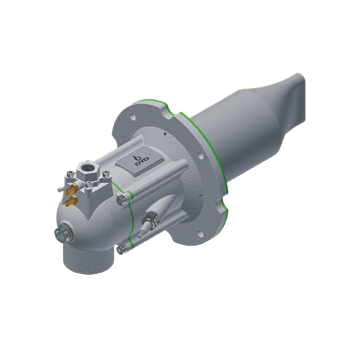

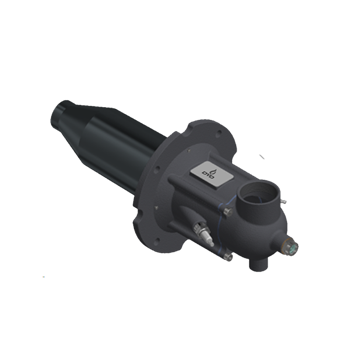

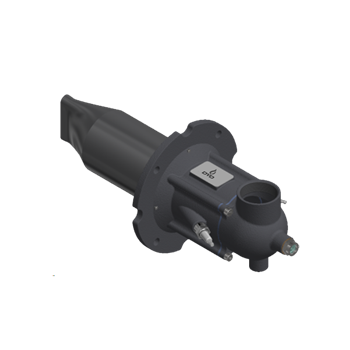

The DNX-C/H gas burner design is suitable for applications that enhance combustion gas recirculation, improve efficiency, improve temperature uniformity, and significantly reduce emissions.

The DNX-C/H gas burner series includes medium, high speed, and ultra high speed flame modes. The combustion chamber material can be configured with different materials according to usage conditions, such as fire resistant burner bricks, silicon carbide, or heat-resistant alloys.

The DNX-C/H gas burner can reliably burn any standard clean industrial fuel gas over a wide range of operations.

DNX-C/H gas burner has good stability and ignition characteristics

Sex. It has a very high operating range and can operate reliably from high excess air to excess fuel. Therefore, it is suitable for various control schemes, including pulse ignition, proportional regulation, constant air regulation of gas, and a combination of the above regulation methods.

Air shell: Q235

Air inlet pipe material: Q235

Maximum furnace temperature for application: 1200 ° C

Fire tube material: SUS 310S

Combustion chamber material: silicon carbide

Combustion head: SUS 310S

Fixed flange: Q235

Preheating air: 250-500 ℃

Power: 66~1240KW

Fuel: NG/COG

Adjustment ratio: 1:22
